Fenghua Transmission Develops Compact Right Angle Gearbox Solutions for Space-Limited Automation

Machine builders are under constant pressure to make equipment smaller without giving up performance. In many automation systems, the available installation space around a motor or transmission is limited, making the layout of the drive system an important part of the machine design.

At Fenghua Transmission Technology (Jiangsu) Co., Ltd., this requirement has become an important focus when developing compact transmission solutions. The company continues to expand its range of right angle gearboxes, planetary gearboxes, servo gearboxes, and customized transmission components for equipment manufacturers looking for more flexible mechanical layouts.

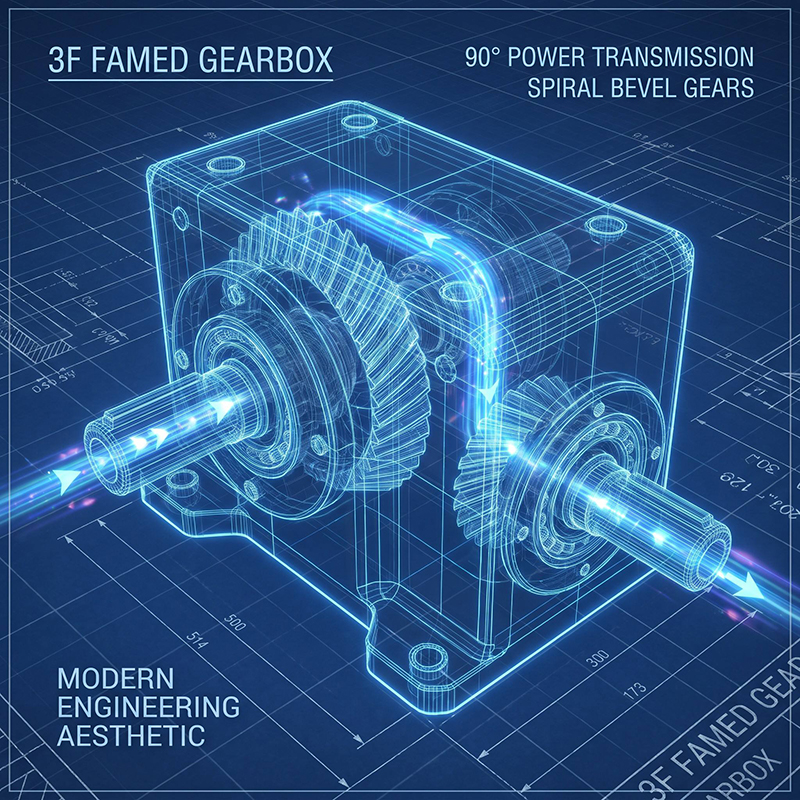

A 90-degree transmission arrangement can solve a practical problem that standard inline gearboxes cannot always address. By changing the direction of power transmission, a right angle gearbox can allow motors and driven components to be positioned more efficiently within a machine.

Designing Around the Machine, Not Just the Gearbox

For OEM equipment manufacturers, gearbox selection rarely starts with a single specification.

Motor size, output torque, reduction ratio, mounting dimensions, shaft configuration, available space, duty cycle, and positioning requirements all need to work together.

This is where application experience becomes important.

Fenghua works with customers during the equipment development process to determine the appropriate transmission configuration. Depending on the application, this may involve a standard gearbox, a customized motor adapter, a different output shaft, or a modified mounting structure.

The company's OEM and ODM capabilities allow these requirements to be addressed during product development rather than after the machine has already been designed.

Where Right Angle Transmission Makes a Difference

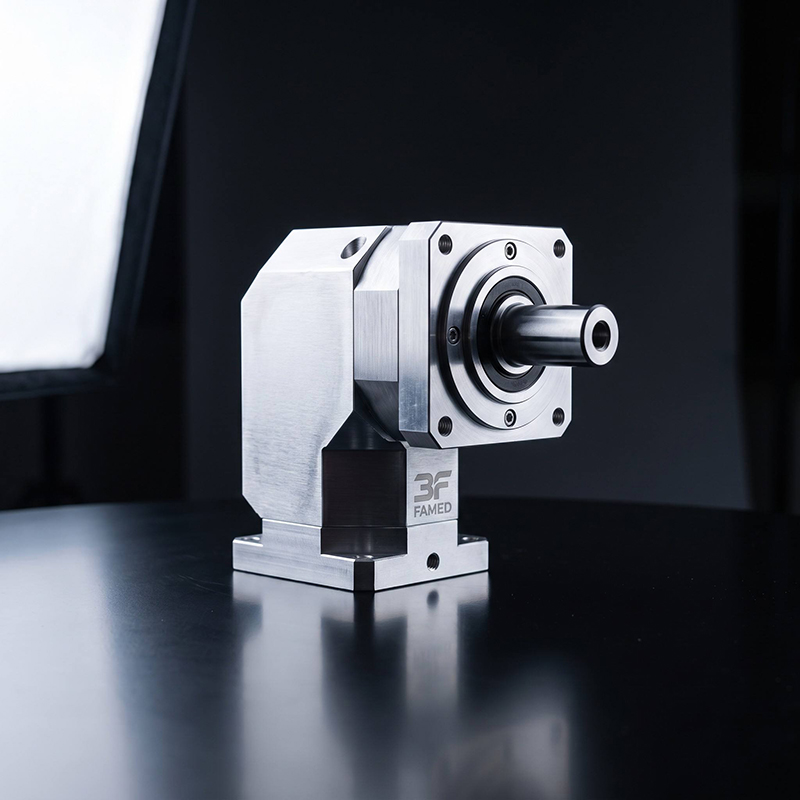

Compact right angle gearboxes can be useful in equipment where the motor and driven mechanism cannot be arranged on the same axis.

Typical applications include:

• Automated assembly equipment

• CNC machinery

• Packaging machines

• Rotary positioning systems

• Material handling equipment

• Semiconductor machinery

• Photovoltaic production equipment

• Robotics and automation systems

For servo-driven applications, gearbox performance also has a direct effect on positioning accuracy and machine response. Backlash, torsional rigidity, transmission efficiency, and bearing performance therefore become important selection criteria.

From Standard Products to Customized Transmission

Not every machine requires a completely new gearbox design. In many cases, the most practical solution is to adapt an existing transmission platform to the customer's mechanical interface.

Fenghua provides support for applications involving:

• Servo motor matching

• Custom input flanges

• Output shaft modifications

• Reduction ratio selection

• Hollow shaft configurations

• Mounting dimension changes

• OEM branding and packaging

This approach allows equipment manufacturers to maintain their existing machine architecture while obtaining a transmission solution suited to their specific requirements.

A Practical Approach to OEM Cooperation

For a gearbox supplier, manufacturing capability is only one part of an OEM relationship. Customers also need consistent communication during sampling, testing, modification, and volume production.

Fenghua Transmission continues to focus on this process, combining precision machining, gearbox assembly, inspection, and application support to serve equipment manufacturers in international markets.

Fenghua Transmission product range covers planetary gearboxes, harmonic reducers, RV reducers, right angle gearboxes, servo gearboxes, and customized motion transmission solutions for industrial automation and precision machinery.

For machine builders working with limited installation space or specialized motor arrangements, the right transmission architecture can make a significant difference to the final equipment design.
