In the world of industrial automation and mechanical power transmission, there is a core component that, while not always in the spotlight, is absolutely indispensable—the Gearbox or Speed Reducer. Known as the "muscles" and "amplifier" of industrial machinery, it silently provides precise and powerful motion for countless applications. Today, let's delve into the basics of gearboxes and see how FengHua Transmission excels in this field.

1. The Gearbox: More Than Just "Reducing Speed"

Many people assume a gearbox is only for reducing speed. Its mission, however, goes far beyond that. Simply put, a gearbox is an independent transmission assembly located between the power source (like a motor) and the working machine. It uses gear drives to achieve three core functions:

1.Reduce Speed, Increase Torque: This is its most fundamental and vital function. It converts the motor's high speed, low torque output into the low speed, high torque output that the equipment requires, thereby "moving" heavy loads.

2.Precisely Control Inertial Loads: By reducing the speed, the load inertia that the motor needs to control is significantly reduced. This allows for smoother and more precise starting, stopping, and speed changing of the equipment.

3.Optimize Power Match: It matches the motor's power to the execution end more rationally and efficiently, protecting the motor from overload shock and extending the service life of the entire system.

Think of it like your car's transmission—it allows the engine's power to be delivered to the wheels in the most suitable way, whether for climbing a hill or cruising at high speed.

2. Main Types of Gearboxes: Each with Its Own Strengths

Based on transmission structure, precision, and efficiency, gearboxes are mainly categorized as follows:

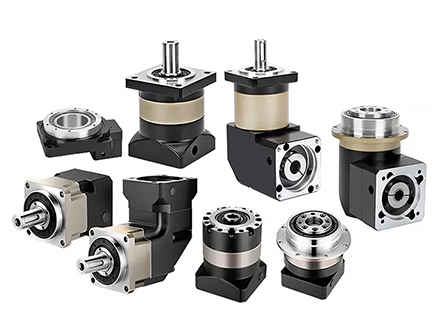

Planetary Gearbox:

Characteristics: Compact structure, high rigidity, high transmission efficiency (typically >95%), low backlash.

Applications: Situations requiring high precision and fast response, such as industrial robots, precision machine tools, aerospace, and medical equipment.

FengHua Advantage: FengHua Planetary Gearboxes use high-quality alloy steel and precision grinding processes, ensuring high positioning accuracy and long service life, making them ideal for automation equipment.

Worm Gear Reducer:

Characteristics: Smooth transmission, low noise, self-locking capability (meaning the worm can drive the gear, but not vice versa), large single-stage reduction ratio.

Applications: Applications requiring low noise, self-locking, and moderate loads, such as packaging machinery, conveyor systems, and door opening/closing systems.

FengHua Advantage: FengHua Worm Gear Reducers use wear-resistant bronze worms and high-quality steel worms, optimized for smooth transmission and exceptional durability.

Gear Reducer (Parallel Shaft/Helical Gear):

Characteristics: High power transmission, strong load capacity, high efficiency, long service life.

Applications: Heavy industry sectors, such as mining machinery, port cranes, mixing equipment, and metallurgical equipment.

FengHua Advantage: FengHua Gear Reducers feature high-strength cast iron housings. The gears are carburized, quenched, and precision ground, offering strong load capacity and adaptability to various harsh working conditions.

3. How to Choose the Right Gearbox? Remember These 4 Key Parameters

Selecting the appropriate gearbox is fundamental to the stable operation of your equipment. Here are the core parameters you need to focus on:

1.Torque: This is the primary basis for selection. You need to calculate the output torque required for your equipment's actual operation, including a safety factor. The rated output torque of the selected gearbox must be greater than this calculated value.

2.Speed: Determine the output speed your equipment requires and the input speed from the motor. The Reduction Ratio = Input Speed / Output Speed.

3.Precision (Backlash): Especially in automation and robotics, backlash is a critical indicator. Lower backlash means higher positioning accuracy and repeatability. FengHua offers various backlash grades to meet different precision requirements.

4.Mounting Dimensions and Style: Confirm that the gearbox's interface (e.g., shaft key, flange) matches your motor and equipment. Common mounting methods include flange mounting and foot mounting.

Simplified Selection Process: Define load requirements → Calculate required torque & speed → Determine reduction ratio → Select type & precision grade → Check mounting dimensions.

4. Conclusion: Choose FengHua, Your Reliable Transmission Partner

Though small, the gearbox is the "power core" of industrial equipment. Making the right choice means higher efficiency, longer service life, and lower total cost of ownership.

FengHua Transmission has deep expertise in the industrial transmission field. We not only provide a full range of planetary, worm, and gear reducers but also have a team of professional engineers ready to offer comprehensive services from technical consultation and selection support to custom solutions. We understand that every transmission solution is vital to our customers' core competitiveness.

Contact our technical team today and let FengHua become your trusted transmission partner, driving the future of industry together!
