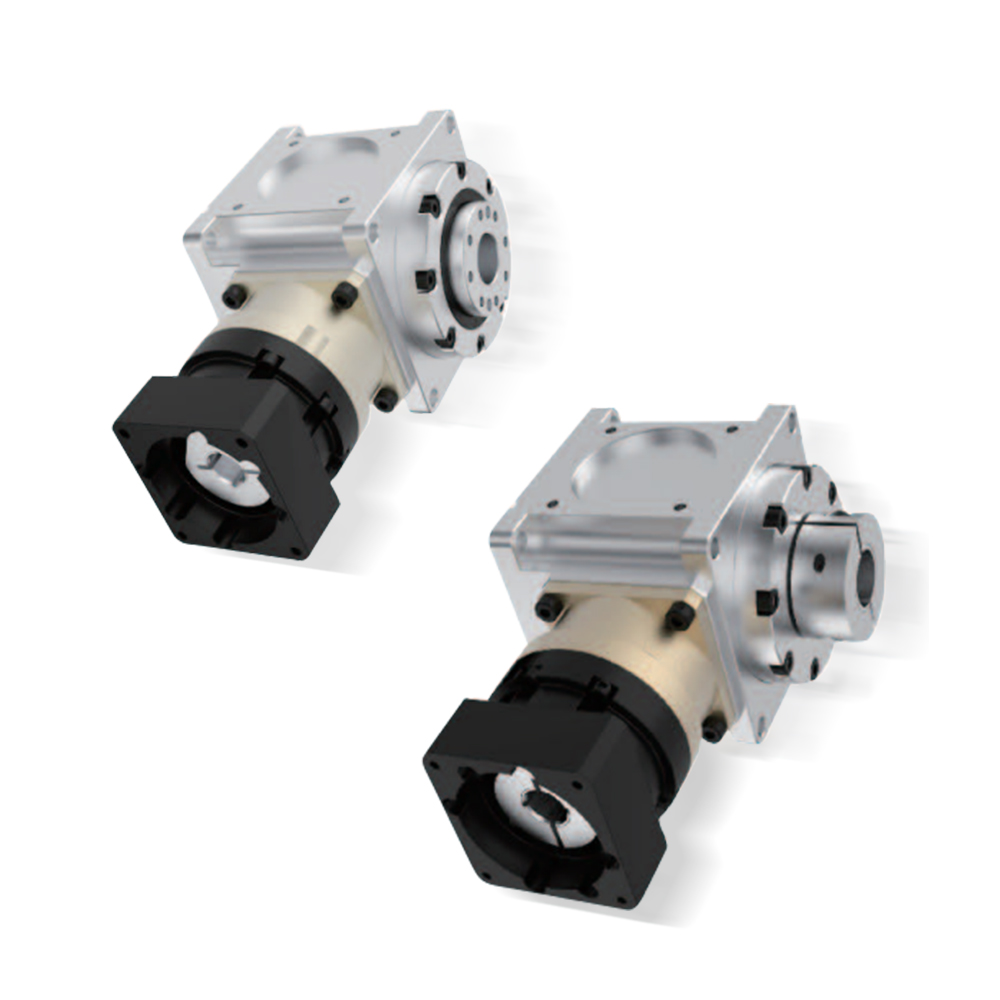

CCW Classic Planetary Input Right Angle Gearbox
The CCW series is a classic planetary input right angle gearbox designed for machinery where the drive direction needs to be changed while maintaining a compact transmission layout.
The gearbox combines a planetary reduction input with a right-angle bevel gear transmission. This configuration allows the motor or planetary reducer to be connected to a 90-degree output arrangement, making the CCW series suitable for equipment where installation space or transmission direction is a concern.
The CCW range is available with different output configurations, including single shaft output, double shaft output, hollow bore output, clamping sleeve output and swivel flange output. This gives machine builders more flexibility when integrating the gearbox into existing transmission systems.
Planetary Input and Right Angle Transmission
The main feature of the CCW series is the combination of planetary input and right-angle transmission.
A planetary reducer can provide speed reduction and torque multiplication before power enters the bevel gear section. The bevel gear stage then changes the direction of rotation through the right-angle transmission.
This arrangement is useful when the motor and driven shaft cannot be installed on the same axis.
Instead of redesigning the entire machine layout, engineers can use a right-angle gearbox to redirect the power transmission path.
Bevel Gear Transmission
The CCW bevel gear uses high-strength carburized alloy steel. The gear teeth are processed with grinding technology to improve transmission accuracy and control operating noise. This is particularly useful in industrial machinery where the gearbox may operate continuously or at relatively high input speeds.
The combination of planetary input and bevel transmission provides a compact solution for applications requiring both speed reduction and a change in transmission direction.
Tapered Roller Bearing Support
The output end uses a tapered roller bearing.
Compared with a simple radial bearing arrangement, the tapered roller bearing is designed to handle axial loads more effectively. This makes the configuration suitable for transmission systems where the output shaft is exposed to additional mechanical loading.
For applications such as rotary platforms or shaft-driven equipment, bearing selection should always be checked against the actual radial load, axial load and overturning moment.
Multiple Output Configurations
One of the advantages of the CCW family is the choice of output structures.
Available configurations include:
Single shaft output
Double shaft output
Hollow bore output
Hollow bore with keyway
Single clamping sleeve
Double clamping sleeve
Swivel flange output
The current CCW product family on the 3F FAMED website lists these configurations as separate models.
This allows the same basic transmission concept to be adapted to different machine layouts.
Applications
CCW right angle gearboxes can be considered for:
Industrial automation equipment
Rotary machinery
Conveyor systems
Packaging machinery
CNC auxiliary equipment
Material handling equipment
Rotary positioning systems
Machine-building applications
Large-load rotating platforms
The exact gearbox should be selected according to the motor, input speed, output torque, load and duty cycle.
Maintenance-Free Lubrication
The gearbox is supplied with imported grease inside the housing and is designed for maintenance-free operation under the specified working conditions.
This can simplify gearbox installation because customers do not need to design an additional lubrication system for normal operating conditions.
Aluminum Alloy Housing
The CCW housing uses high-strength aluminum alloy.
The housing provides structural support for the internal transmission components while keeping the gearbox relatively easy to install. The material also makes the unit suitable for machine builders who are looking for a balance between mechanical strength and overall equipment weight.
OEM and ODM Support
3F FAMED supports OEM and ODM transmission requirements for machine manufacturers and system integrators.
Customization can be evaluated for:
Motor mounting interface
Input planetary reducer
Output shaft
Hollow bore
Flange dimensions
Keyway
Mounting holes
Housing interface
Output configuration
For a new project, customers can send the motor model, required output speed, output torque, ratio and installation drawing.
FAQ
What is a CCW planetary input right angle gearbox?
It is a right-angle transmission unit combining a planetary input stage with bevel gear transmission to change the direction of power transmission.
What is the main advantage of the CCW design?
It provides a compact way to combine planetary speed reduction with 90-degree power transmission.
Does CCW have different output configurations?
Yes. The product family includes single shaft, double shaft, hollow bore, clamping sleeve and flange output configurations.
Can CCW be customized?
Yes. OEM and ODM requirements can be evaluated according to the customer's motor and machine design.
How do I select a CCW gearbox?
Provide the motor power or torque, input speed, required output speed, reduction ratio, load and mounting dimensions.
