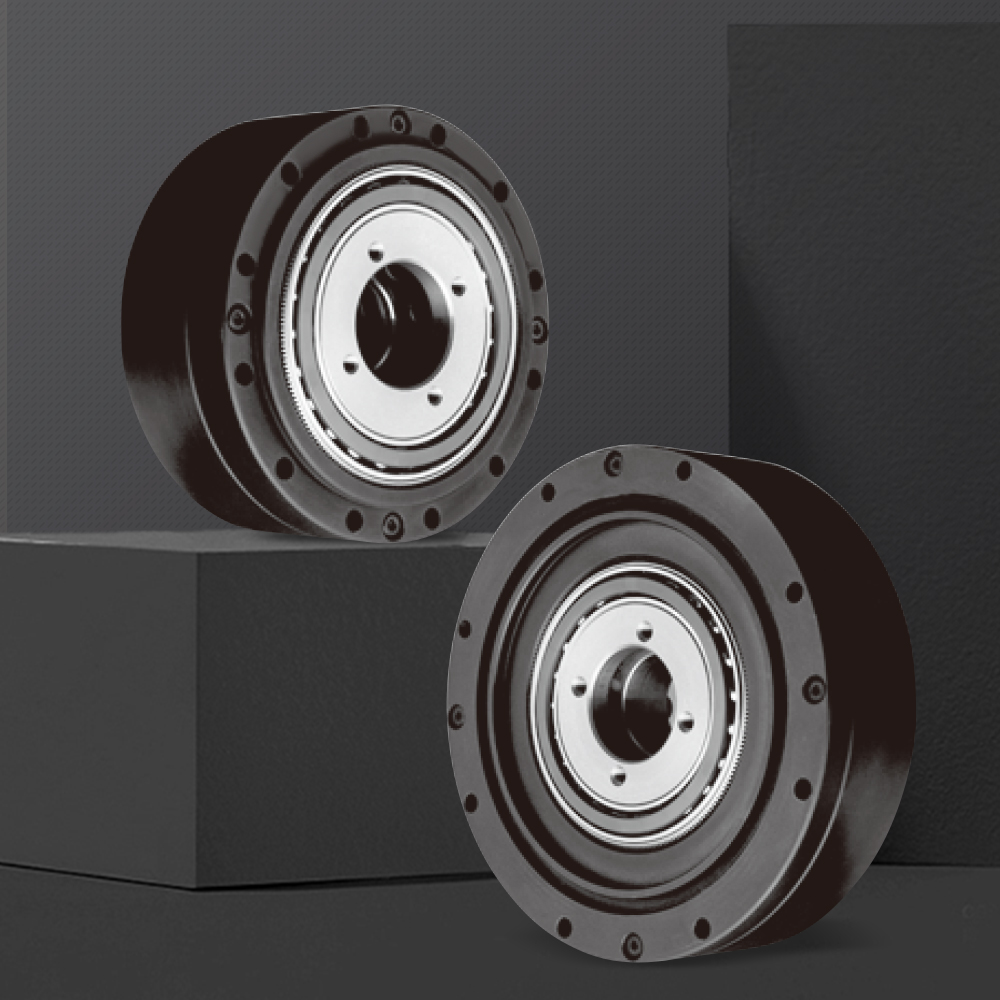

CSD Series Flat Harmonic Reducer
Ultra Compact Zero Backlash Precision Transmission Solution for Robotics and Automation
CSD Series Harmonic Reducer is a compact flat type precision gearbox designed for applications requiring high accuracy, lightweight structure and space-saving installation.
Based on advanced strain wave gear technology, CSD series provides zero backlash, high positioning accuracy, excellent rigidity and smooth transmission performance.
It is widely used in industrial robots, collaborative robots, semiconductor equipment, CNC machines and precision automation systems.
Product Highlights
1. Ultra Compact Flat Design
CSD series adopts a thin and lightweight structure to save installation space.
Advantages:
2. Zero Backlash High Precision Transmission
Advanced harmonic drive technology ensures excellent positioning accuracy.
Benefits:

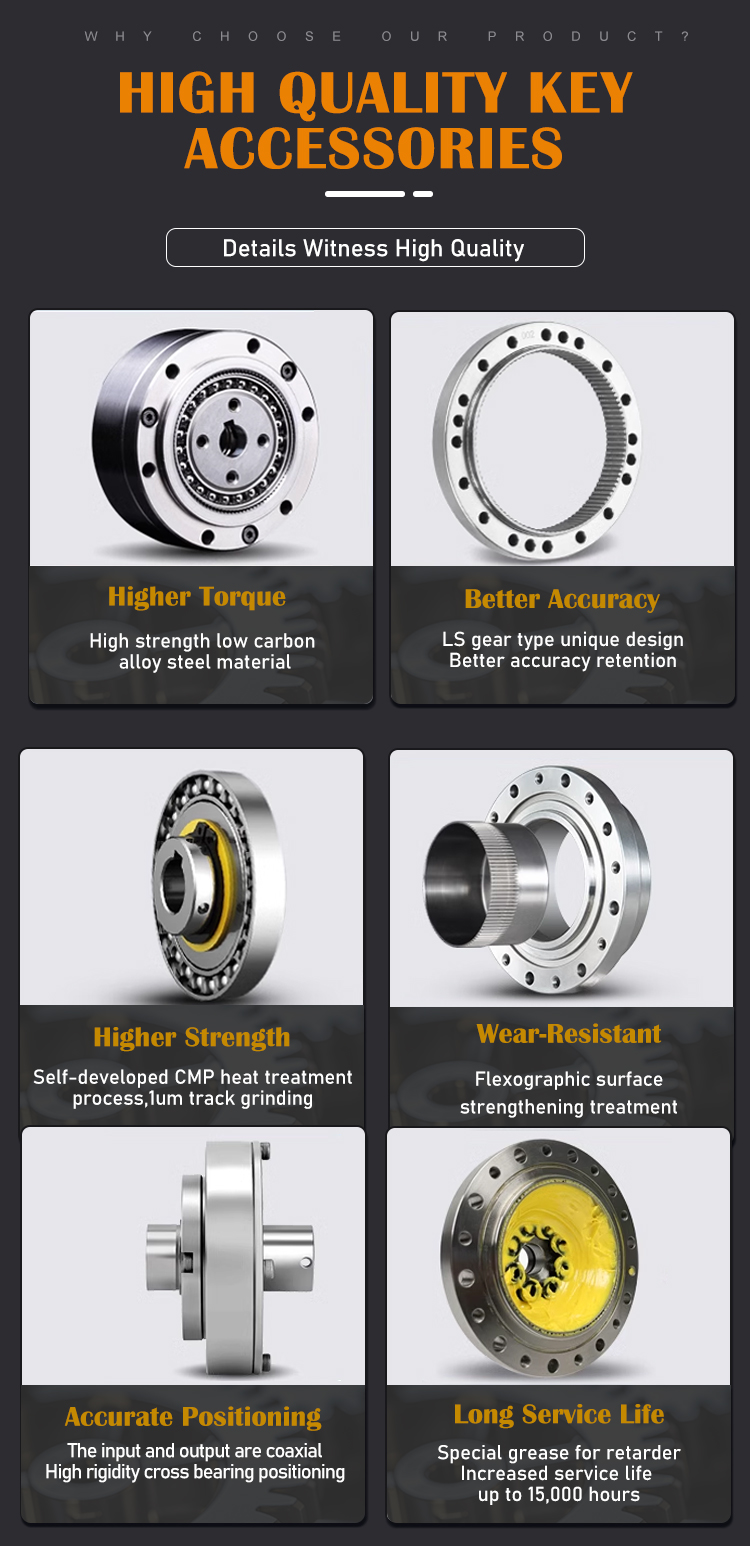

3. High Rigidity and Torque Density
Optimized internal structure provides high load capacity in a compact body.
Features:
High torsional rigidity
High torque output
Reliable performance
Long service life
4. Low Noise Smooth Operation
Precision manufacturing technology reduces vibration and operating noise.
Advantages:
5. Servo Motor Compatibility
CSD harmonic reducer can be customized to match various servo motors.
Compatible brands:
Yaskawa
Mitsubishi
Panasonic
Siemens
Delta
ABB
Customized motors
Product Features
Product Series:CSD Harmonic Reducer

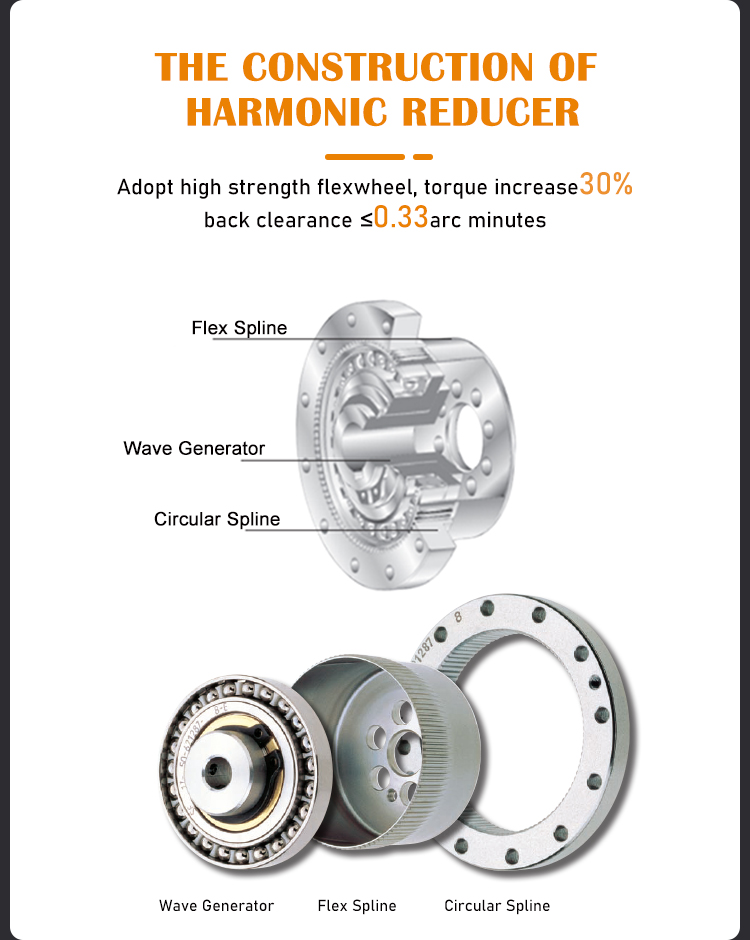

Gear Type:Strain Wave Gear Transmission
Structure:Flat Compact Design
Backlash:Zero / Ultra Low Backlash
Precision:High Precision
Input:Servo Motor
Output:High Rigidity Output
Material:High Strength Alloy Steel
Installation:Flange Mounted
Lubrication:Long Life Grease
Customization:OEM / ODM Available
Applications
Industrial Robot
Used for:
Robot Arm
Robot Joint
Welding Robot
Assembly Robot
Collaborative Robot
Semiconductor Equipment
Applications:
CNC Machine
Applications:
Automation Equipment
Applications:
OEM & ODM Customization
We provide customized harmonic reducer solutions.
Customization:
Reduction ratio
Motor flange
Output shaft
Installation dimension
Product labeling
Packaging solution

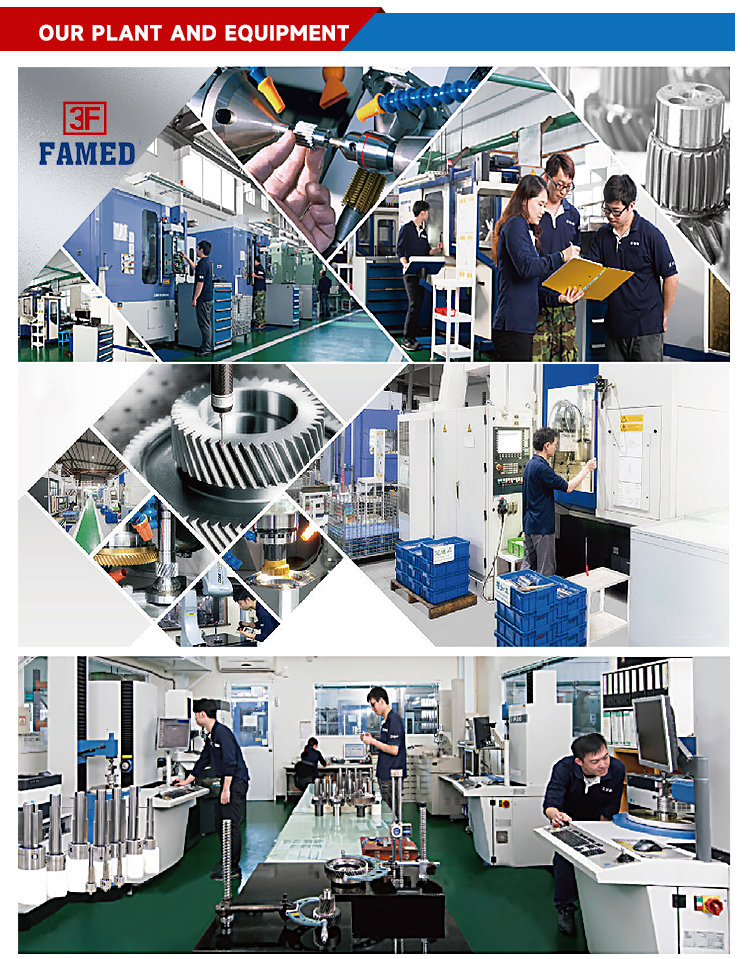

Why Choose Fenghua Transmission
Professional Gearbox Manufacturer
Fenghua specializes in:
20+ Years Gear Manufacturing Experience
Advantages:
OEM ODM Service Capability
Support global customers with:
Custom design
Prototype development
Mass production
Technical support
Quality Control
