AC servo drives

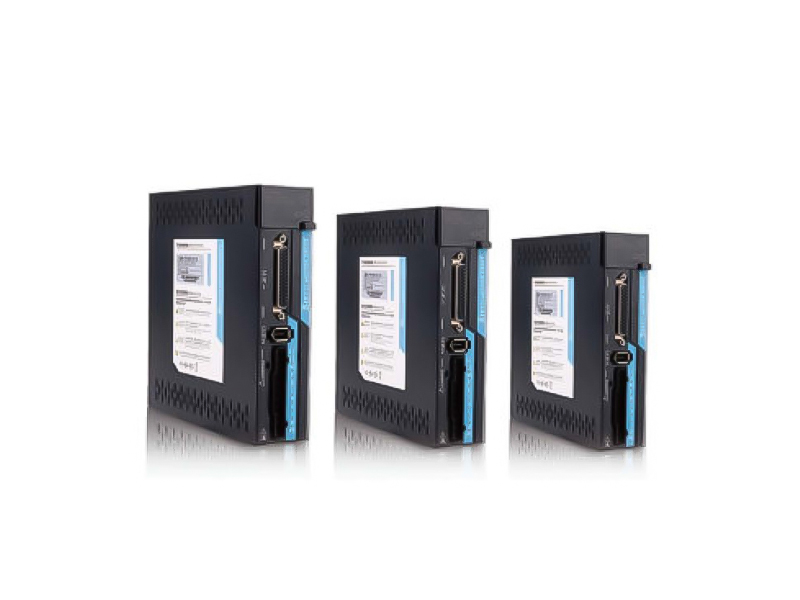

K series pulse type AC servo system

Powerful internal motion control function

Can complete position, speed, torque, return to origin and other control methods

Support I/O control and standard ModbusRTU protocol

It can replace PLC or pulse module in some occasions to reduce application costs.

Introduction

Specification Table

Download

The K-series pulse AC servo system is a high-performance motor drive system widely used in the field of industrial automation. The following is a detailed introduction to the K-series pulse type AC servo system:


1、 System Overview

The K-series pulse type AC servo system consists of servo drivers, servo motors, and corresponding feedback devices (such as encoders). The system adopts advanced control algorithms and high-speed communication protocols, which can achieve high-precision position control, speed control, and torque control. The K series servo system is known for its high speed, high precision, high responsiveness, and high stability, and is widely used in fields such as CNC machine tools, robots, and automated production lines.


2、 Main features

High precision control: The K series servo system uses high-resolution encoders for position feedback, combined with advanced control algorithms, to achieve micrometer level position control accuracy.

High speed response: The system has the ability to respond quickly and can quickly follow control instructions to achieve high-speed motion control.

Strong stability: By optimizing the system structure and control algorithms, the K series servo system has excellent anti-interference ability and stability, and can operate stably in harsh industrial environments.

Rich communication protocols: Supports multiple communication protocols such as RS232, MODBUS, CANopen, etc., facilitating communication and data exchange with various control systems and upper computers.

Easy debugging: Provides comprehensive debugging software and tools, supports parameter settings, status monitoring, fault diagnosis, and other functions, making it convenient for users to debug and maintain.


3、 Technical parameters

The specific technical parameters of the K-series pulse type AC servo system may vary depending on different models and manufacturers, but generally include the following aspects:

Power supply voltage: single-phase or three-phase 220VAC (adjustable range -15%+10%), 5060Hz. Some models also support 380VAC power supply.

Output power: covering multiple power levels, such as 2kW, 2.8kW, 3.5kW, 5kW, 7.5kW, etc., to meet different application requirements.

Encoder type: Supports 2500 line incremental/power-saving encoders and 17bit/20bit/23bit absolute value encoders, with some high-end models only supporting absolute value encoders.

Communication methods: Supports multiple communication methods such as RS232, standard MODBUS protocol, CANOPEN bus, and some models also support MII protocol.

Monitoring function: Provides 16 status monitoring functions including position, speed, current, voltage, input and output, making it convenient for users to conduct real-time monitoring and fault diagnosis.


4、 Application Fields

The K-series pulse type AC servo system has been widely used in the following fields due to its excellent performance and wide application range:


Numerical Control Machine Tool: Used to achieve high-precision machining control, improve machining accuracy and efficiency.

Robot: As the core driving component of a robot, it achieves precise and complex movements of the robot.

Automated production line: Used for material transportation, assembly, testing and other processes on automated production lines to improve the automation level and production efficiency of the production line.

Printing and packaging machinery: used to achieve precise printing and packaging actions, improve product quality and production efficiency.
