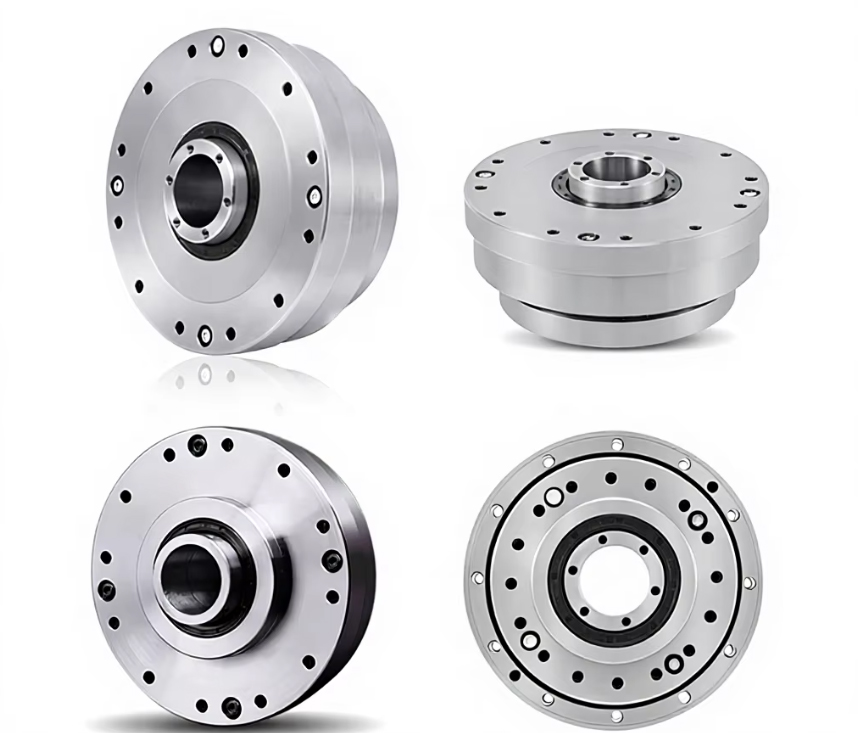

SHG SHF Hollow Shaft Harmonic Reducer for Robot Applications
The SHG SHF hollow shaft harmonic reducer is designed for robot joints and rotary mechanisms where internal cable routing and compact mechanical integration are important.
A hollow shaft allows cables, wires, pneumatic lines or other components to pass through the center of the rotary mechanism. This can simplify the internal layout of robotic joints and reduce interference between moving components.
Why Use a Hollow Shaft Reducer?
In many robotic systems, cables and signal lines must pass through rotating joints.
With a conventional solid-shaft gearbox, additional cable routing space may be required around the transmission.
A hollow shaft design provides an opening through the center of the reducer, allowing designers to route components through the rotary axis.
This can be useful for:
Robot arm joints
Collaborative robots
Rotary positioning systems
Camera positioning systems
Semiconductor handling equipment
Automated inspection equipment
Space-Saving Robot Joint Design
The internal structure of a robot joint can become complicated when the motor, gearbox, cables and sensors must all fit inside a limited housing.
The SHG SHF hollow shaft configuration provides a more flexible mechanical layout.
Instead of routing cables around the outside of the reducer, the machine designer can use the central shaft area for cable and component routing.
This can help create a cleaner and more compact robot joint.
Precision Harmonic Transmission
The SHG SHF series combines hollow-shaft integration with harmonic transmission.
The harmonic mechanism provides high reduction capability and accurate rotary transmission within a compact package.
For robot manufacturers, this combination can be useful when both mechanical space and positioning performance are important.
Applications
Robotic Arms
Hollow-shaft harmonic reducers can be integrated into robotic joints where cables need to pass through the rotation axis.
Collaborative Robots
Compact transmission components can help reduce the size of joint assemblies in lightweight robotic systems.
Rotary Axes
The reducer can be used for rotary mechanisms requiring controlled movement and compact cable routing.
Semiconductor Equipment
Semiconductor equipment often requires compact mechanical structures and organized internal cable routing. Hollow rotary transmission can simplify machine design.
Automated Inspection
Camera or inspection mechanisms may require repeated rotation while maintaining internal wiring. A hollow shaft can simplify the design.
Mechanical Integration
When designing a hollow-shaft application, engineers should consider:
The available internal space should be evaluated together with the mechanical load rather than selecting the reducer based only on the bore diameter.
OEM and ODM Hollow Shaft Solutions
Different robot designs require different shaft dimensions and mounting interfaces.
3F FAMED supports OEM and ODM customization for customers who require modifications to standard transmission components.
Possible customized elements include:
Hollow bore dimensions
Mounting flange
Motor interface
Output interface
Mounting holes
Housing dimensions
Shaft configuration
Customers can provide a CAD drawing or mechanical specification for engineering evaluation.
Factory and Engineering Capability
Fenghua Transmission Technology has more than 20 years of experience in mechanical transmission and provides precision gearboxes for industrial automation, robotics, CNC machinery, semiconductor equipment and other industries. The company accepts OEM and ODM orders and provides engineering support for customized applications.
The website also provides downloadable drawings and 3D models for several SHG/SHF configurations, including input shaft, cross-slider, hollow combined and flat-key types.
FAQ
What is a hollow shaft harmonic reducer?
It is a harmonic gearbox with a central opening that allows cables, wires or other components to pass through the transmission axis.
Why use a hollow shaft in a robot joint?
It can simplify internal cable routing and help reduce interference between cables and moving mechanical components.
Can the hollow bore be customized?
OEM/ODM customization can be evaluated according to the required mechanical dimensions and application.
Is the hollow shaft suitable for servo motors?
Yes. The reducer can be configured with suitable motor mounting interfaces for servo motor applications.
Can you provide 3D CAD files?
3F FAMED provides 3D model and drawing resources for selected products and configurations.
Is the hollow shaft suitable for servo motors?
Yes. The reducer can be configured with suitable motor mounting interfaces for servo motor applications.
Can you provide 3D CAD files?
3F FAMED provides 3D model and drawing resources for selected products and configurations.
