Motion controllers

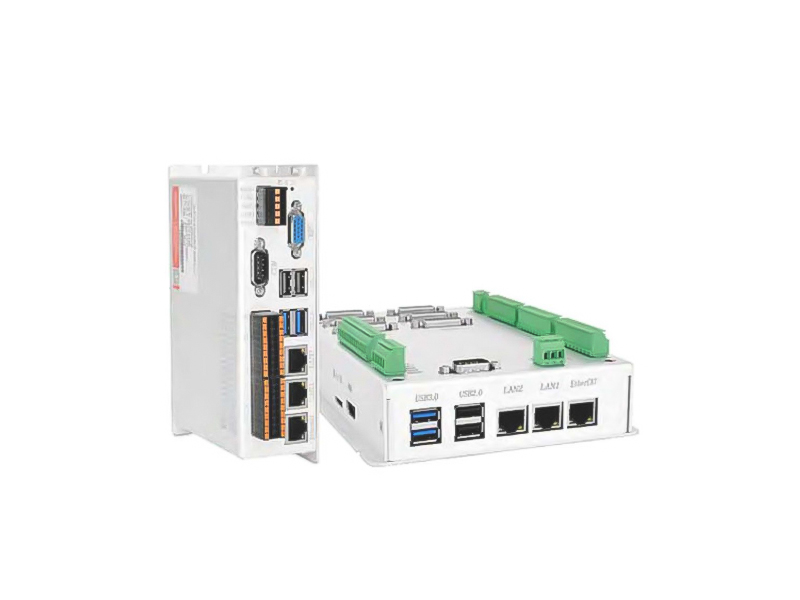

Visual motion control all-in-one machine

PCI series high-performance multi-axis motion control card is a bus-type motion control card.

The control card itself supports 64-axis motion control to achieve complex continuous trajectory control requirements such as linear interpolation, arc interpolation, spiral interpolation and elliptical interpolation.

PCI series high-performance multi-axis motion control cards can be used in robots (SCARA, Delta. 6 joints), electronic semiconductor equipment (detection equipment, assembly equipment, locking equipment, soldering machines), dispensing equipment, and laser processing Equipment, non-standard equipment, printing and packaging equipment, textile and clothing equipment, stage entertainment equipment, medical equipment and assembly lines and other applications.

Introduction

Specification Table

Download

Visual motion control all-in-one machine is a device that integrates machine vision and motion control functions. It combines the image processing capabilities of machine vision with the precise control capabilities of motion control cards, providing efficient and accurate solutions for automated production. The following is a detailed analysis of the visual motion control all-in-one machine:


1、 Basic Definition and Function

The visual motion control all-in-one machine integrates machine vision system and motion control system to achieve image acquisition, processing, analysis, and precise motion control of target objects. It can determine the position, shape, size and other characteristics of objects based on image information, and issue control instructions accordingly to drive mechanical components to perform precise movements, thereby completing complex automated production tasks.


2、 Characteristics and advantages

Highly integrated: The visual motion control all-in-one machine integrates machine vision and motion control functions, reducing communication and data transmission time between devices and improving overall processing efficiency.

Precise control: Through the precise recognition and analysis of target objects by machine vision systems, combined with the precise control of motion control systems, high-precision motion control of mechanical components has been achieved.

Flexible configuration: The visual motion control all-in-one machine supports multiple programming methods and interfaces, and can be flexibly configured and expanded according to actual needs.

Easy to operate: Provides a user-friendly interface and debugging software, reducing the user's barrier to entry and making it easy for non professionals to get started.

Cost reduction: Through integrated design, the footprint and energy consumption of equipment have been reduced, thereby lowering the operating costs of the enterprise.


3、 Application Fields

Visual motion control integrated machines are widely used in various fields that require high-precision and high-efficiency automated production, such as 3C electronics, semiconductors, new energy, robots, packaging and printing, textiles and clothing, laser processing, medical pharmaceuticals, CNC machine tools, etc. Especially in scenarios that require flexible feeding, precision assembly, quality inspection, etc., the advantages of visual motion control all-in-one machines are more obvious.
