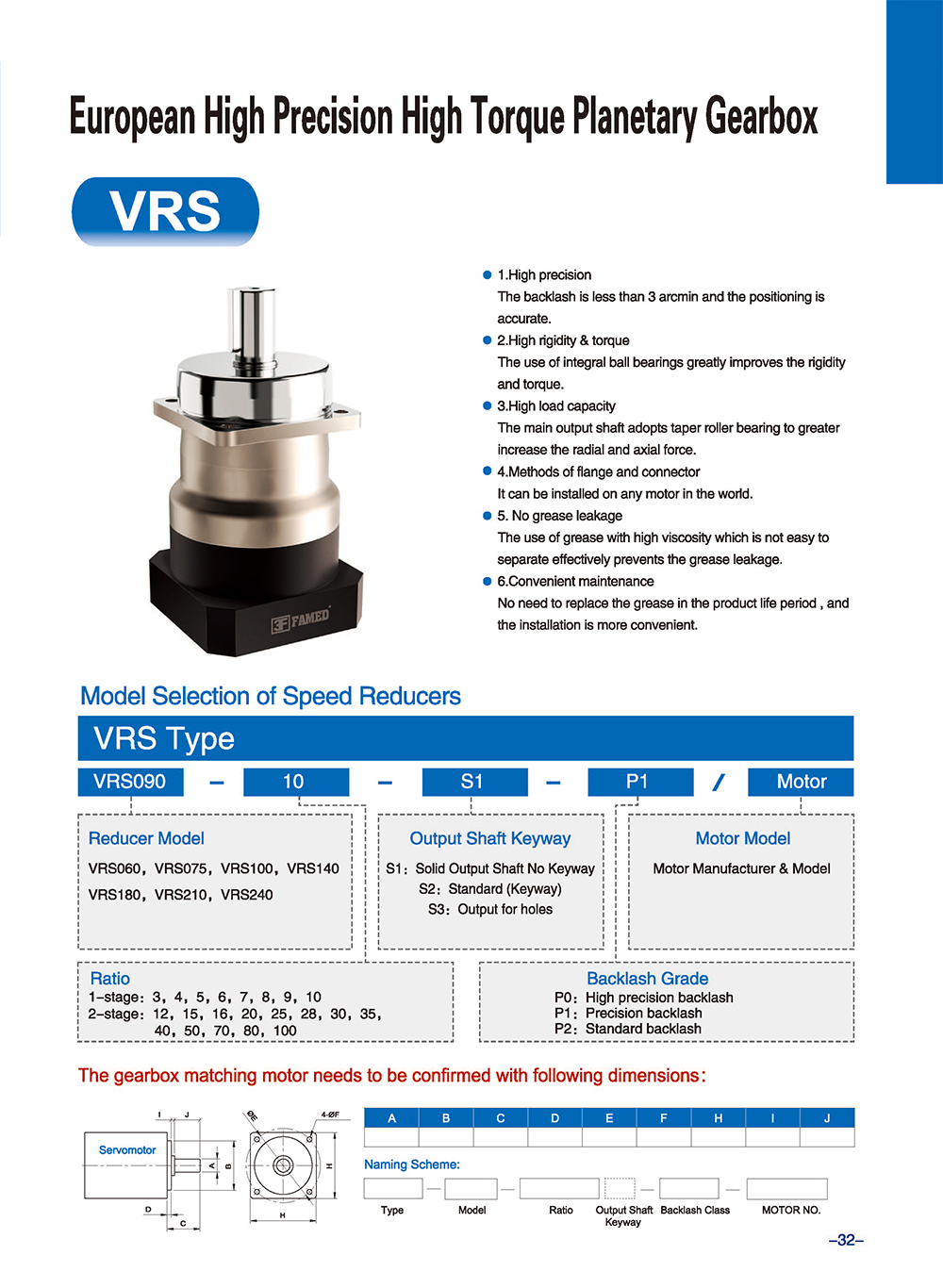

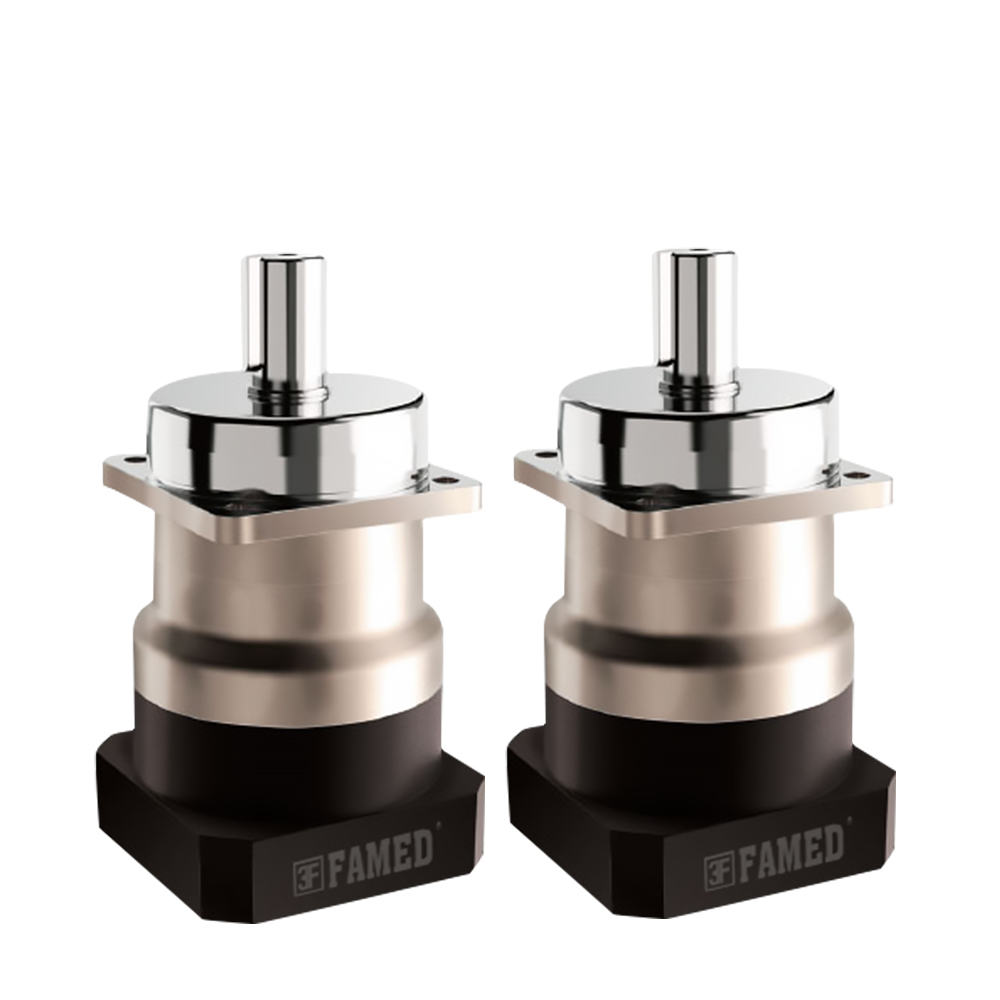

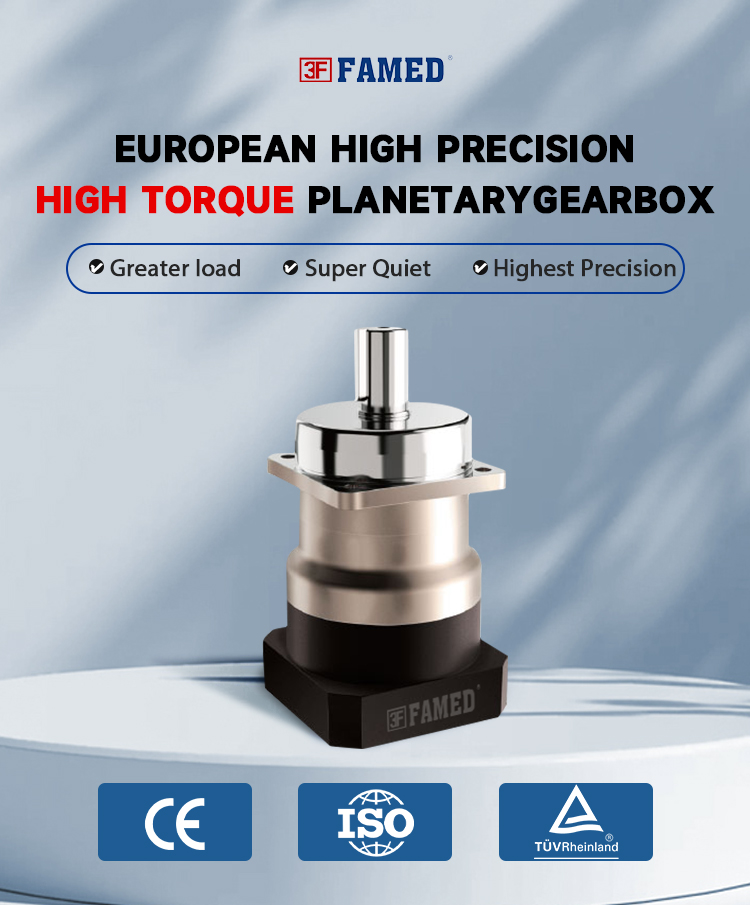

VRS Series Precision Planetary Gearbox
The VRS Series is a high precision planetary gearbox designed for servo motor transmission, industrial automation and demanding motion control applications.
The planetary transmission structure provides high torque density, stable power transmission and compact installation. The gearbox is suitable for applications where positioning accuracy, mechanical rigidity, transmission efficiency and reliable continuous operation are important.
The VRS planetary reducer can be configured for different servo motors and machine layouts. OEM and ODM customization is available for motor adapters, mounting dimensions, output shaft configurations, gear ratios and other mechanical requirements.
Main Applications
CNC machine tools
Industrial robots
Automation equipment
Packaging machinery
Material handling systems
Machine tools
Semiconductor equipment
Production lines
Motion control systems
Servo drive systems
Product Selling Points
01 High Precision Transmission
Precision planetary gearing provides stable and accurate torque transmission for demanding motion control applications.
Suitable for:
CNC equipment
Servo systems
Robotics
Precision automation
Machine tools
02 High Torque Density
The planetary gear structure distributes the load through multiple gear meshes, allowing high output torque within a compact gearbox housing.
This makes the VRS series suitable for applications with limited installation space and demanding load requirements.
03 Low Backlash Option
Low backlash configurations are available for applications requiring accurate positioning and repeatable motion.
Suitable for:
Servo positioning
Robotic axes
CNC rotary systems
Precision automation
Motion control equipment
Note: Actual backlash should be selected according to the specific VRS model and transmission ratio.
04 High Torsional Rigidity
The optimized gearbox structure provides strong resistance to torsional deformation under dynamic loads.
Benefits include:
Stable positioning
Reduced mechanical deflection
Improved motion response
Reliable operation under changing loads
05 High Transmission Efficiency
Precision-machined gears and optimized planetary transmission help reduce transmission losses and improve overall mechanical efficiency.
Actual efficiency depends on gearbox size, reduction ratio, load and operating conditions.
06 Compact Installation
The compact planetary structure provides a high power-to-size ratio.
The VRS series can be integrated into machines where installation space is limited while maintaining the required torque and speed reduction.
07 Servo Motor Compatibility
The gearbox can be matched with different servo motor brands and motor specifications through suitable motor adapters.
Motor matching can be customized according to:
Motor flange
Motor shaft diameter
Pilot diameter
Bolt pattern
Input shaft dimensions
Motor power
Rated torque
08 Reliable Continuous Operation
The VRS planetary gearbox is designed for industrial transmission applications requiring stable operation over extended working cycles.
It can be used in automated production equipment, CNC machinery, robotics and other continuous-duty systems when correctly selected and installed.
Fenghua Transmission Company Advantages
Fenghua Transmission Technology (Jiangsu) Co., Ltd. focuses on precision transmission products and industrial gearbox solutions.
Factory Manufacturer
Fenghua provides factory-direct planetary gearboxes and precision transmission products for international B2B customers.
More Than 20 Years of Gear Industry Experience
The technical team has extensive experience in gear design, precision transmission and gearbox development.
OEM and ODM Support
Customized solutions are available for:
Motor adapter
Gear ratio
Output shaft
Flange
Housing
Mounting dimensions
Product configuration
Servo Motor Matching
Fenghua can provide gearbox solutions matched to different servo motor mounting requirements.
Industrial Application Experience
Products are designed for applications including:
Robotics
CNC machinery
Semiconductor equipment
Photovoltaic equipment
Packaging machinery
Industrial automation
Machine tools
B2B Project Support
For large-volume projects, customers can provide motor specifications, torque requirements, speed, ratio, mounting dimensions and application conditions for technical evaluation.
English
Russian
Spanish
Italian
Arabic
Korean
German
Japanese
Vietnamese
Turkish
Introduction

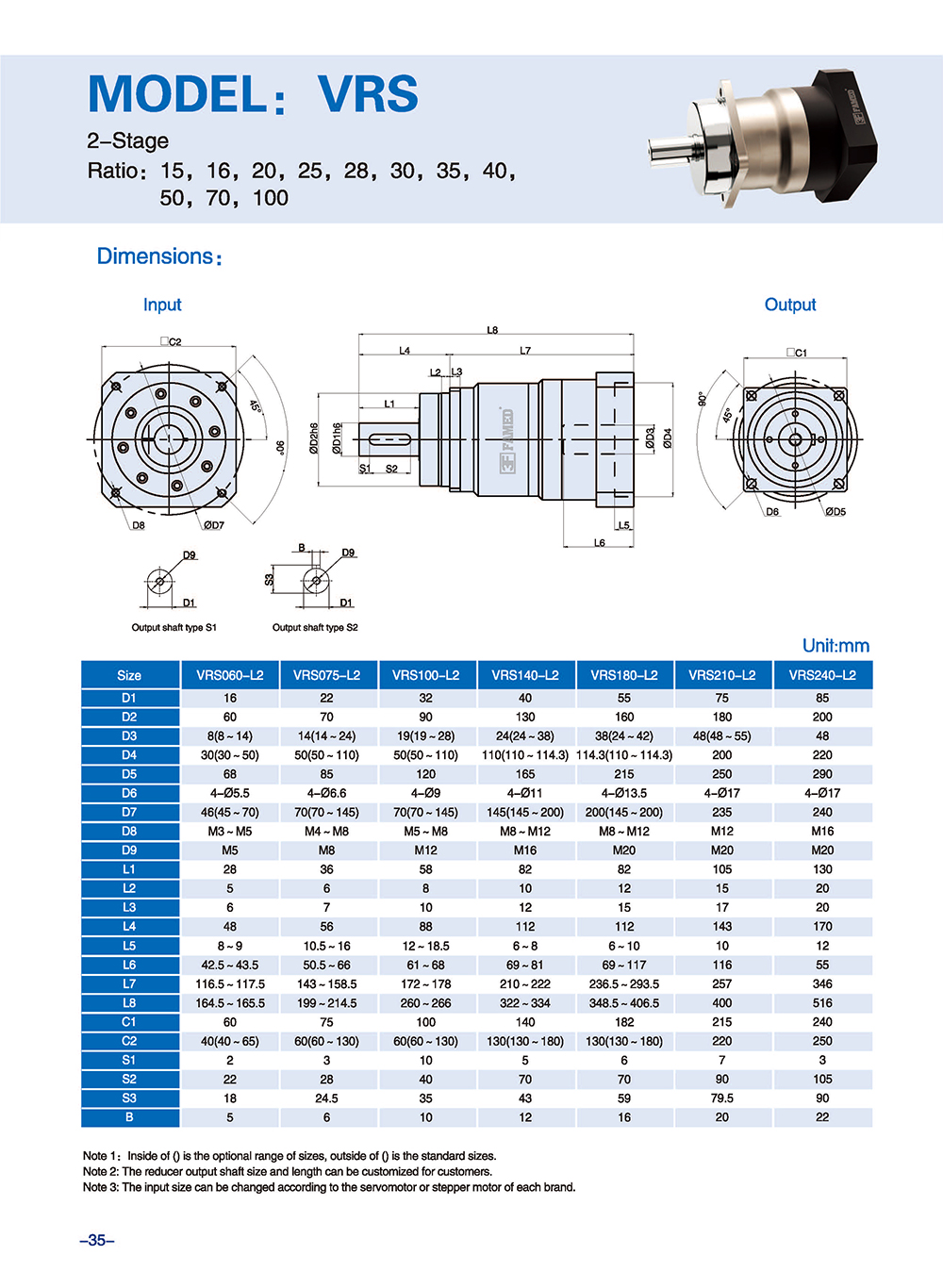

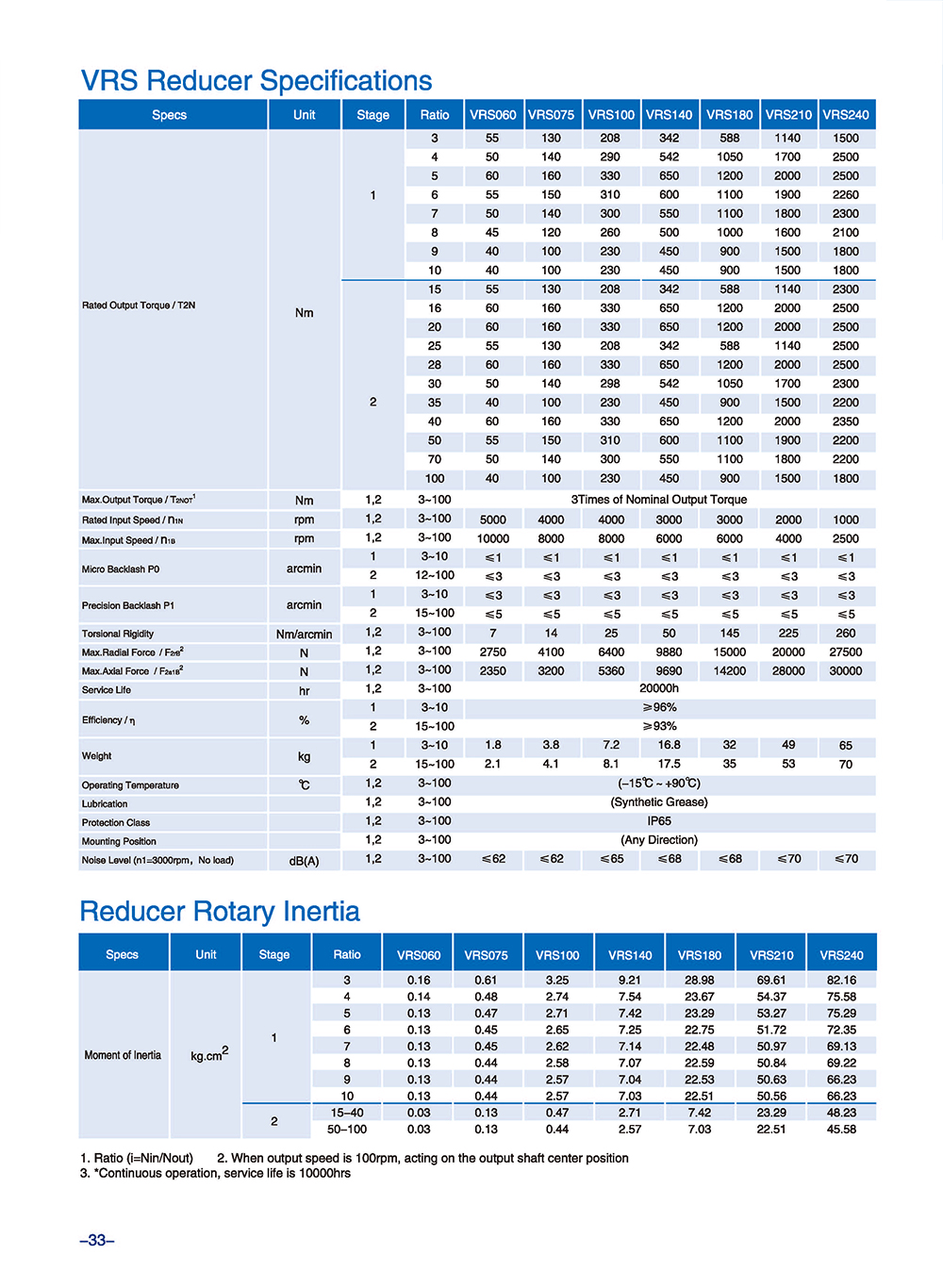

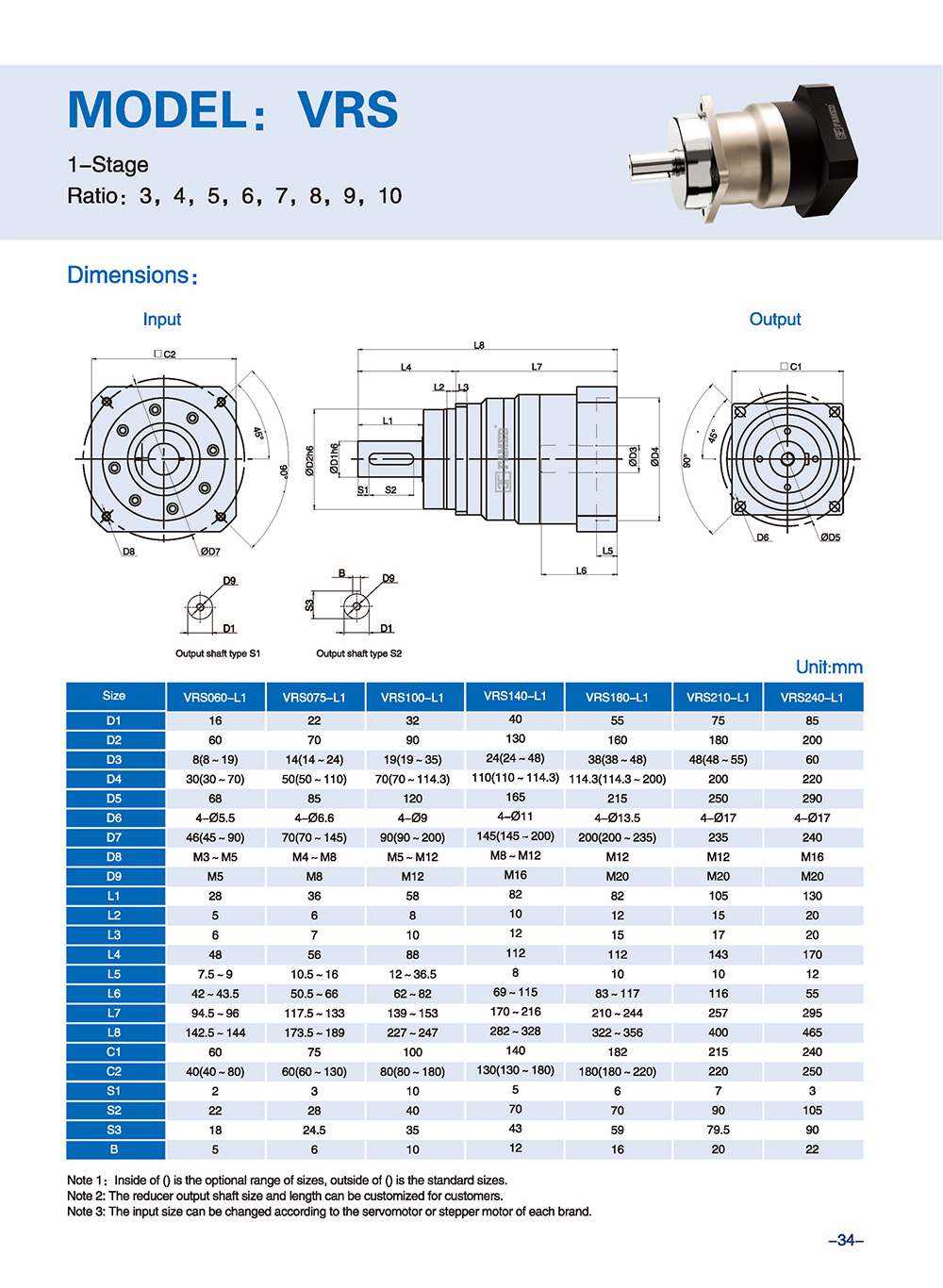

Specification Table
