AT Series Axle input steering gear

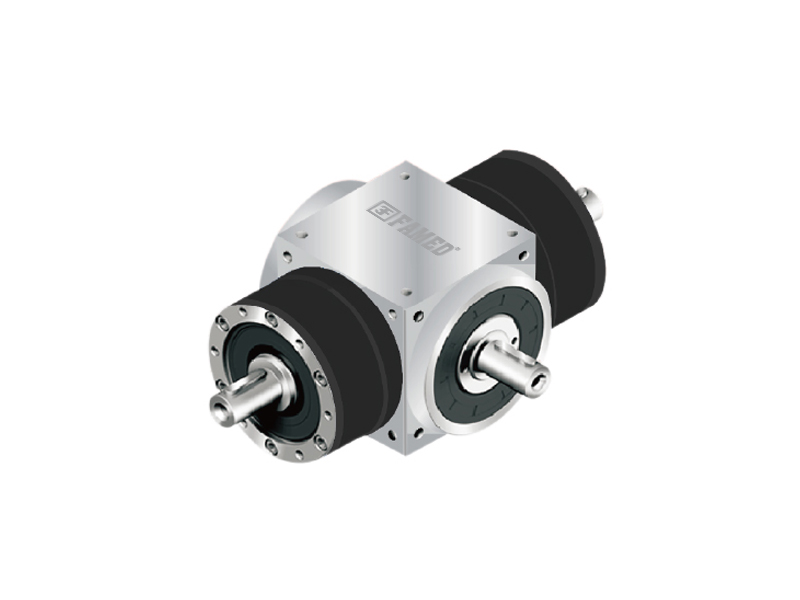

AT-LM (RM) DOUBLE OUTPUT SHAFT OPPOSITE DIRECTION STEERING GEARBOX

High precision: the gearbox was made of spiral bevel gears.

its transmission efficiency can reach to 98%

Light weight: the material of housing is aluminum.

Maintenance free: it adopts synthetic grease.

Easy to install: with double-output shaft in opposite directions.

Introduction

Specification Table

Download

                                        Product  Description

AT-LM (RM) dual output shaft reverse steering gearbox:

1. High precision: the gearbox adopts spiral bevel gears.

2. Transmission efficiency can reach 98%

3. Light weight: the housing material is aluminum.

4. Maintenance-free: synthetic grease is used.

5. Easy to install: with reverse dual output shafts.

AT-LM (RM) dual output shaft reverse steering gearbox plays an important role in industrial machinery and equipment. It is widely used, mainly due to its unique structural and functional advantages. Angle reducers, especially angle planetary reducers, can save a lot of space during installation because the motor input shaft and the reducer output shaft are at a right angle of 90 degrees, and the installation angle can be installed at 360 degrees without dead angles, which is very flexible. This kind of reducer is usually used in high-precision fields such as precision machine tools, military equipment, metallurgical equipment, wind power generation equipment, chemical equipment, solar energy, industrial robots, conveying equipment, engineering machinery, textile equipment, packaging equipment, etc.

The advantages of AT-LM (RM) dual output shaft reverse steering gearbox include compact structure, high efficiency, high rigidity and ability to withstand high loads. These advantages make the angle planetary reducer widely used in some applications that require high precision and reliability. For example, in the fields of mechanical manufacturing, automation, transportation, etc., the angle planetary reducer has become an indispensable part. In practical applications, it is very important to select a suitable angle planetary reducer. Many factors need to be considered, such as torque requirements, input-output speed ratio, working environment, etc., to ensure efficient and reliable operation of mechanical equipment.




Moment of inertia

SpecificationStageRatio
AT065 LM
AT065RM


AT075 LM
AT075 RM


AT090 LM
AT090RM


AT110 LM
AT110 RM

AT140 LM
AT140 RM


AT170 LM
AT170 RM


AT210 LM
AT210 RM


AT240 LM
AT240 RM


AT280 LM
AT280 RM

Moment of
Inertia kg.cm2
1












10.511.33.167.723.5758.99195.4369.34799.12
1.50.641.162.826.7419.3749.28155.45283.58595.78
20.441.112.76.3117.7545.35140.24249.74511.76
30.431.092.666.1717.1844.01134.95237.71483.06
40.431.092.656.1317.0643.7133.58234.72476.26
50.431.092.656.1217.0243.6133.14233.67473.58
