SHG SHF Harmonic Reducer High Precision Gearbox For Robot Joint

SHG SHF Harmonic Reducer for High Precision Robot Joints

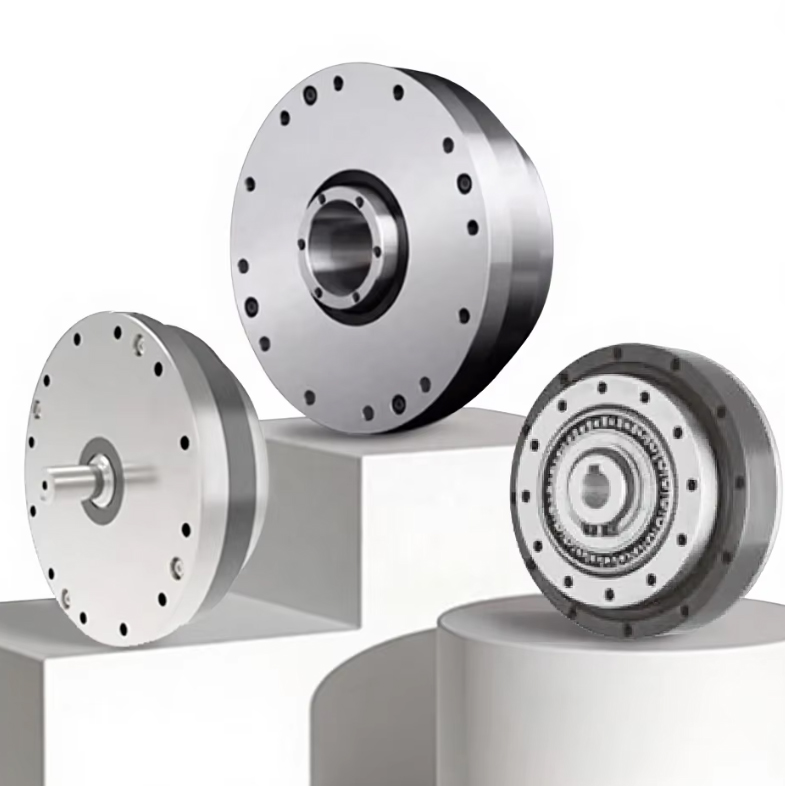

The SHG SHF harmonic reducer is a precision transmission solution developed for robotic joints and other motion systems that require accurate positioning, compact construction and stable rotary transmission.

In a robot joint, the gearbox has a direct influence on positioning accuracy, repeatability, response and overall mechanical performance. The SHG SHF series combines a compact harmonic transmission structure with high reduction capability, making it suitable for robotic arms, collaborative robots, automated positioning systems and other precision motion applications.

Unlike conventional speed reducers designed mainly for general power transmission, a harmonic reducer is designed to provide precise motion control within a compact mechanical structure. This makes the SHG SHF series particularly suitable for robot manufacturers and automation equipment builders where installation space and positioning performance are important.

High Precision Transmission for Robot Motion

Robot joints frequently operate with repeated acceleration, deceleration, forward and reverse movement. Any excessive backlash in the transmission system can affect the final positioning accuracy of the robot.

The SHG SHF harmonic reducer is designed for precision motion transmission and low backlash operation. The harmonic transmission mechanism provides accurate rotary movement and helps maintain stable positioning during repeated motion cycles.

For robotic applications, the reducer can be integrated with a servo motor to create a compact joint drive system.

Compact Robot Joint Design

Space is often limited inside robotic joints. A gearbox with a high reduction ratio but a large external size can increase the overall size and weight of the robot.

The SHG SHF series uses a compact coaxial transmission arrangement, allowing the gearbox to be integrated into relatively small mechanical spaces.

This design is suitable for:

• Industrial robot joints

• Collaborative robots

• Robotic arms

• Automated positioning axes

• Pick-and-place systems

• Precision rotary mechanisms

Stable Motion and High Rigidity

Robot joints are exposed to changing loads during acceleration and deceleration. High torsional rigidity is therefore important for maintaining stable motion.

The SHG SHF harmonic reducer is designed for applications requiring accurate transmission and controlled rotary movement. When properly matched with the motor and mechanical load, the reducer can help improve the overall rigidity and response of the robot joint.

Typical Robot Applications

The SHG SHF series can be used in different robot configurations, including:

Industrial Robot Arms

Robot manufacturers can use harmonic reducers in compact joint assemblies where accurate movement and controlled positioning are required.

Collaborative Robots

Compact size and precision transmission make harmonic gearboxes suitable for selected collaborative robot joints and lightweight automation systems.

Pick-and-Place Robots

The reducer can be used in rotary joints that require frequent positioning and reversing movement.

Inspection and Vision Systems

Precision rotary movement is important for automated inspection equipment. A harmonic reducer can provide controlled angular positioning for rotary mechanisms.

Motor Compatibility

The SHG SHF harmonic reducer can be configured for servo motor applications. Motor mounting dimensions, shaft size, flange dimensions, torque and speed should be confirmed before selecting the appropriate configuration.

For OEM projects, customers can provide the servo motor model or motor drawing. 3F FAMED can evaluate the required motor interface and recommend a suitable gearbox configuration.

OEM and ODM Support

3F FAMED provides OEM and ODM support for customers developing robotic joints and automated motion systems.

Customization can include:

• Motor mounting interface

• Input shaft dimensions

• Output flange

• Mounting hole pattern

• Housing configuration

• Hollow shaft dimensions

• Gear ratio

• Special mechanical requirements

For new robot projects, customers can provide CAD drawings, motor specifications or mechanical requirements for engineering evaluation.

Why Choose 3F FAMED?

Fenghua Transmission Technology (Jiangsu) Co., Ltd. has more than 20 years of experience across its R&D, technical and sales teams in mechanical transmission. Its product range includes planetary reducers, harmonic reducers, RV reducers, precision right-angle gearboxes, motors and other motion-control products. The company supports OEM and ODM projects and exports products to more than 40 countries and regions.

For robot manufacturers, this means the gearbox can be developed as part of a complete transmission solution rather than treated only as a standard catalog component.

FAQ

What is the SHG SHF harmonic reducer used for?

It is mainly used for precision rotary transmission in robot joints, automation equipment, positioning systems and other motion-control applications.

Can the SHG SHF reducer be used with servo motors?

Yes. The reducer can be configured for servo motor applications according to motor dimensions and load requirements.

Can 3F FAMED provide OEM service?

Yes. OEM and ODM support is available for motor interfaces, shafts, flanges, mounting dimensions and other application-specific requirements.

How do I select a robot joint reducer?

The main parameters include required output torque, motor speed, reduction ratio, external load, duty cycle, installation space and positioning requirements.

Can you provide CAD drawings?

Technical drawings and 3D model resources are available for selected SHG/SHF configurations, and customers can contact the engineering team for model selection. The company website also provides a dedicated drawings and 3D model download section.
